Project Sóley
Last modified: 31.08.2019
started: 11.01.2019
My goal is carve out my daughters name Sóley, from a wooden board and be able to light it up with different light schemes. I want to use VoffCon to handle the commands sent to the project. I will also be using the FastLED Library to control the light strip.
The type of the light strip I will be using is APA102 5V addressable and to control the strip I will be using Esp32 development board
Component needed
I will need these items for the project
- 12 millimeter Wooden board for letters
- 5 millimeter Wooden board for stubs
- Glue for wood
- Glue heat gun, and glue for it
- Sandpaper, and/or a Sanding power tool
- Jigsaw, for carvign
and these electrical components
- Esp32 development module
- ?? Watts 5V Power supply
- Addressable APA102 5V addressable light strip
Making the Board

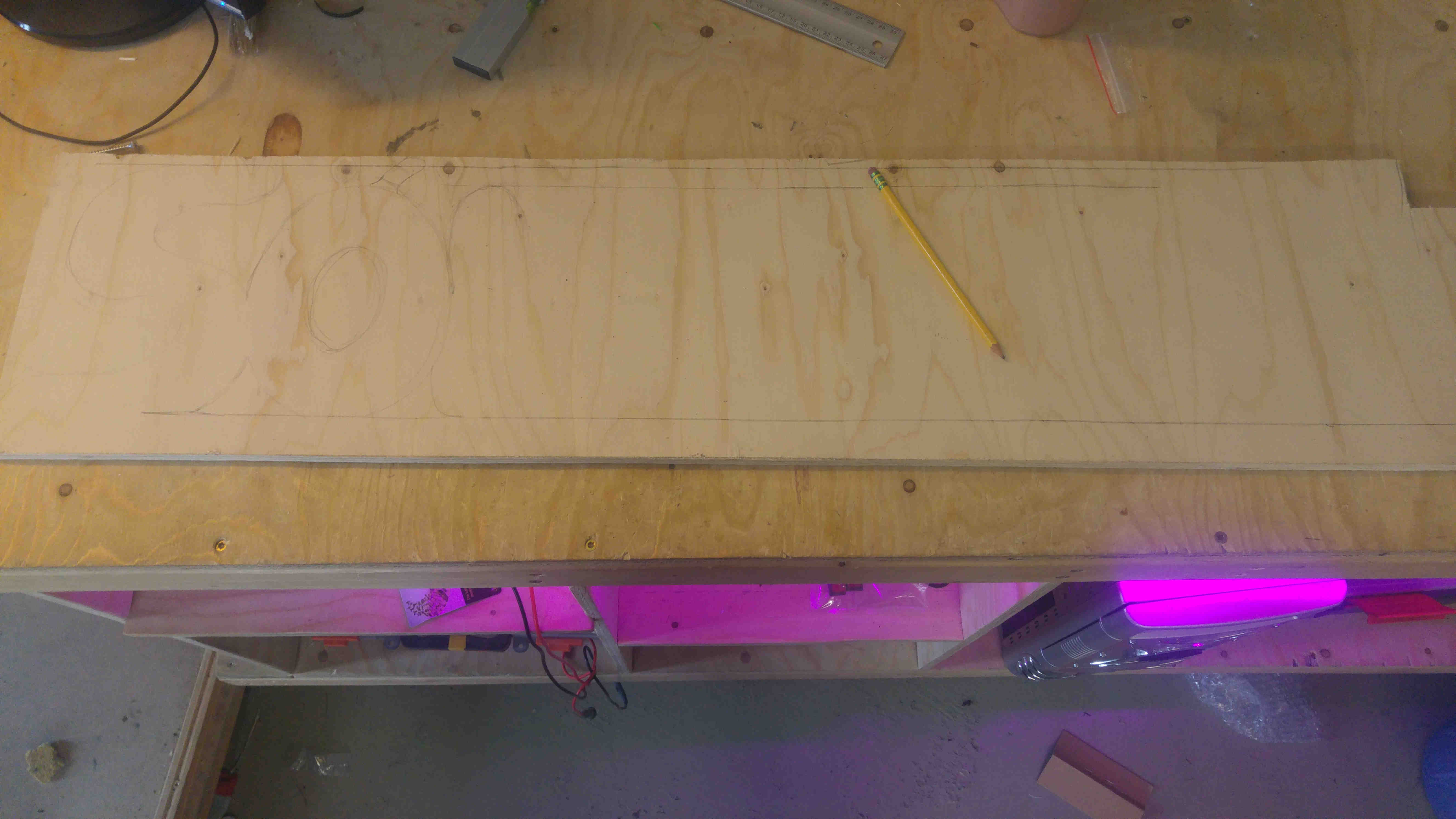

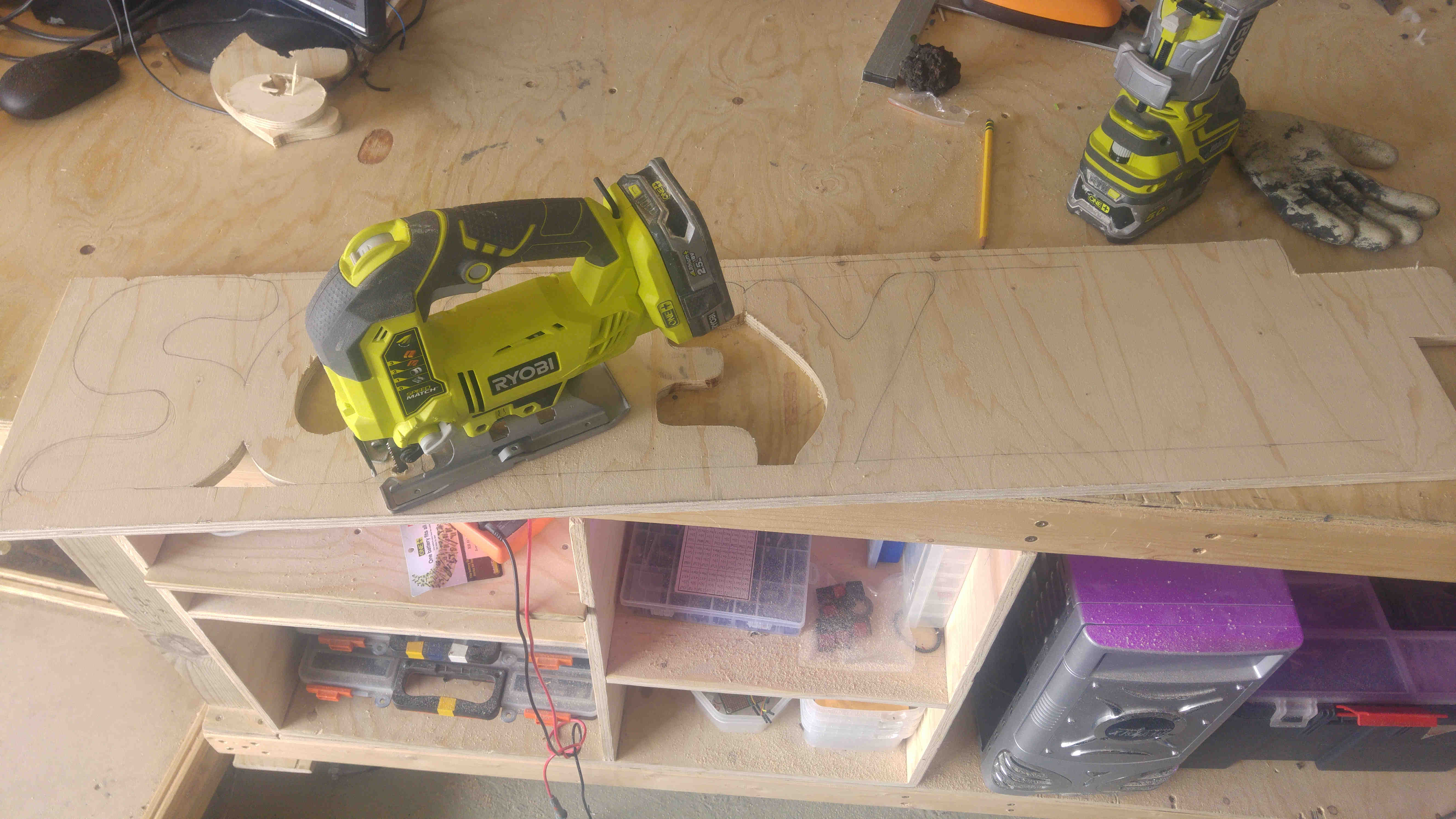

Drawing and cutting the 12 mm board

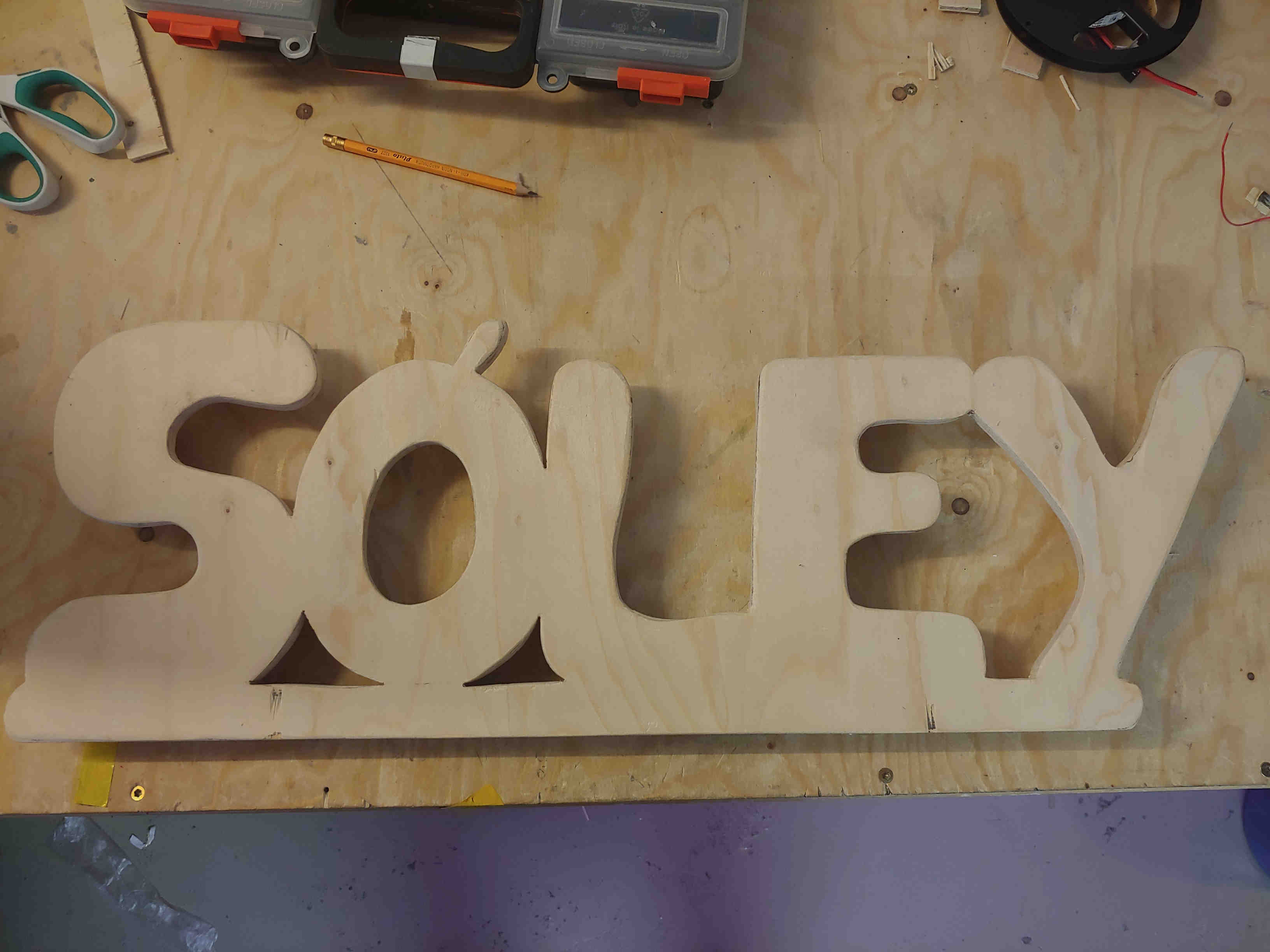

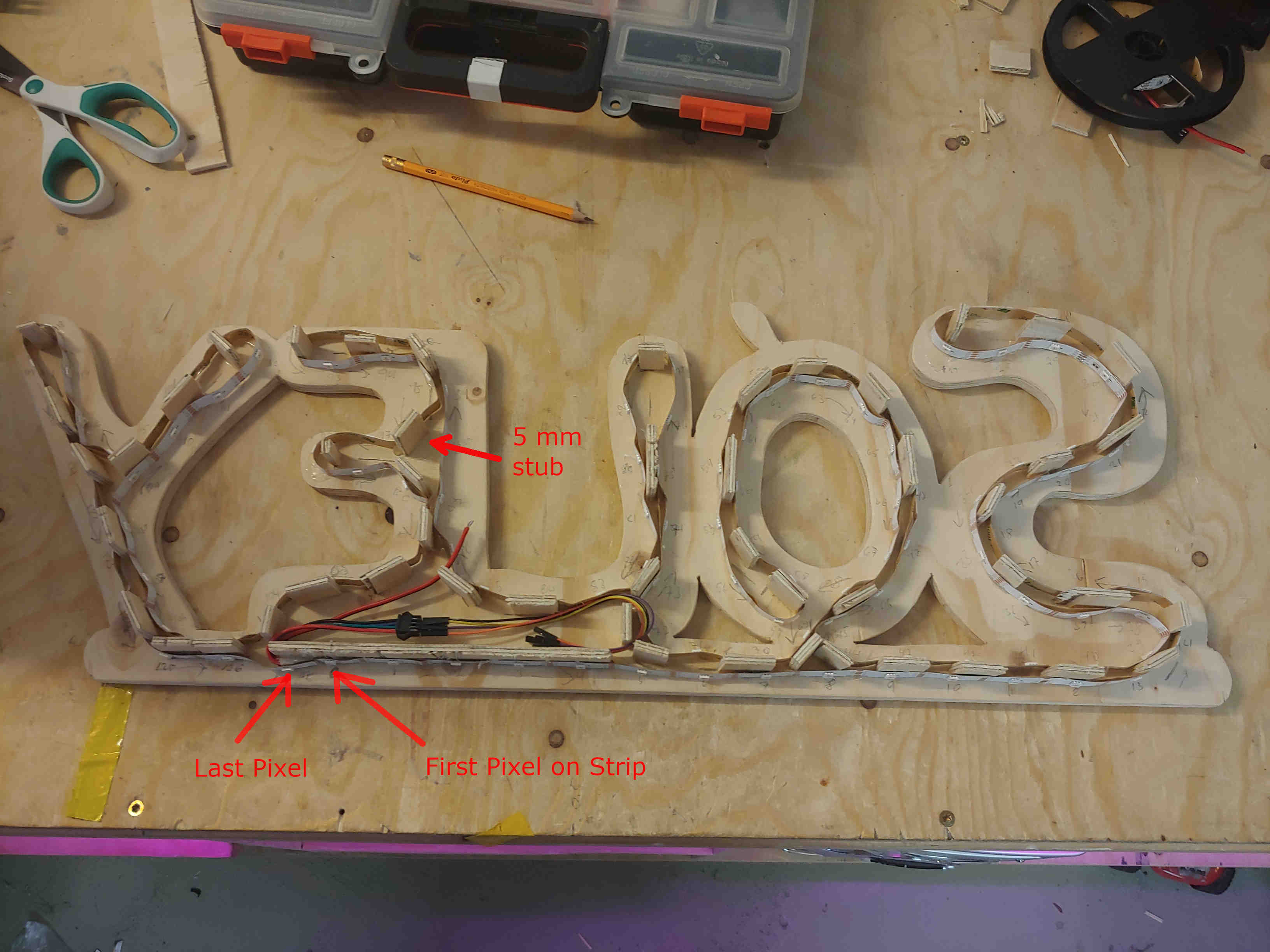

Sanded and 5mm stubs glued to 12mm board. Then glued the strip with a glue gun to the stubs. I also labeled each pixel with a number. First pixel is number 0 and last number 127.

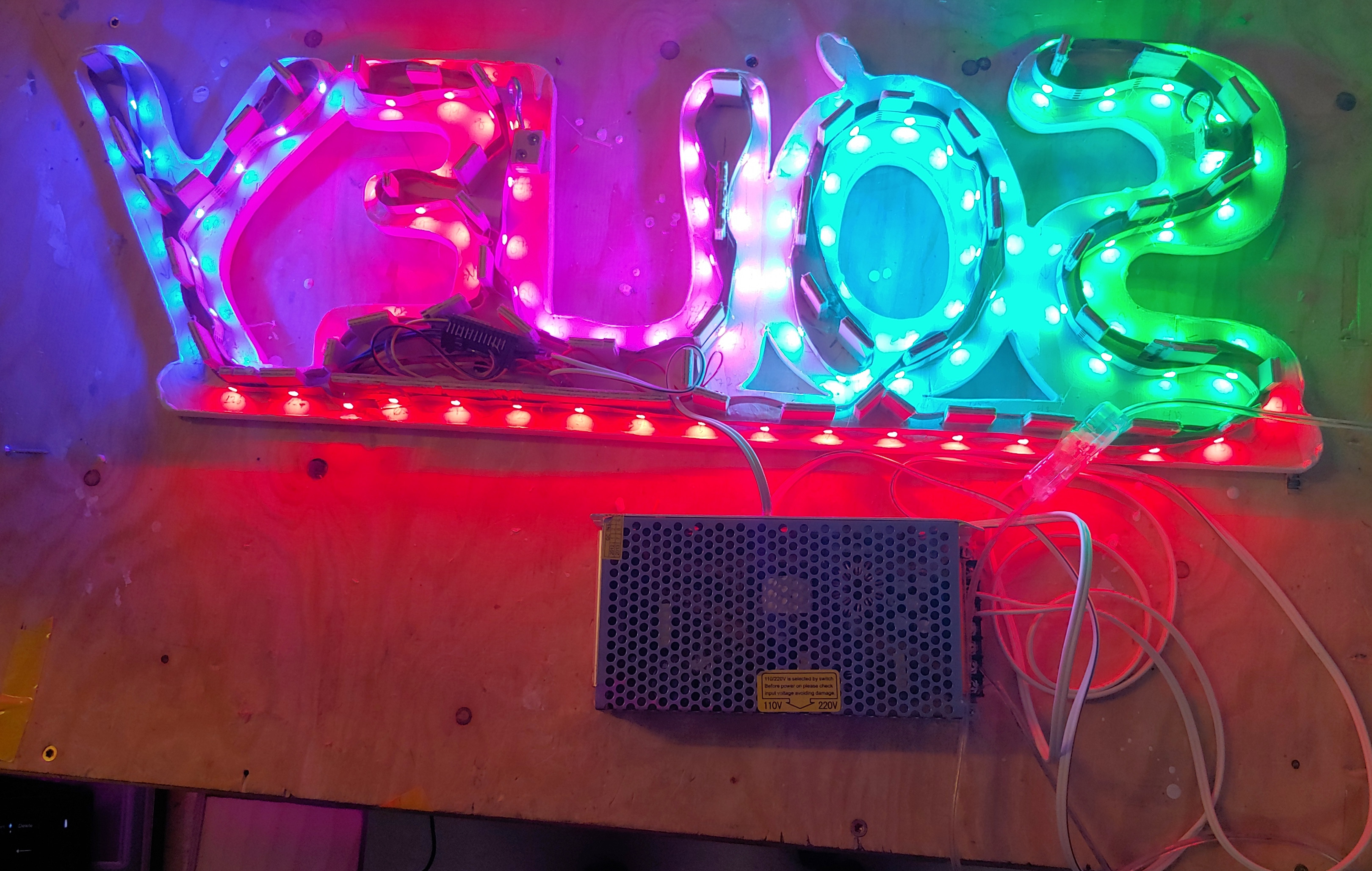

Back of the project

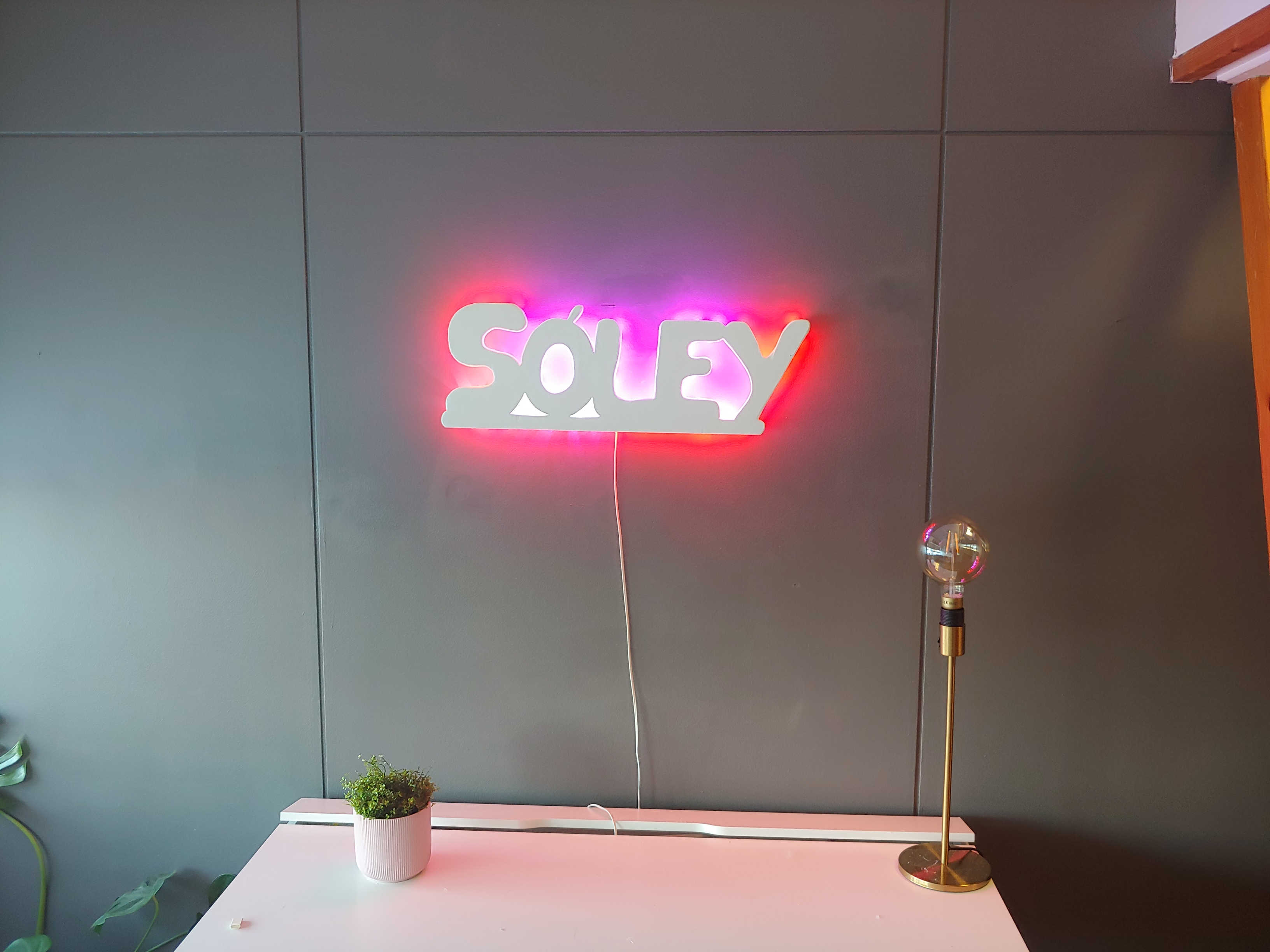

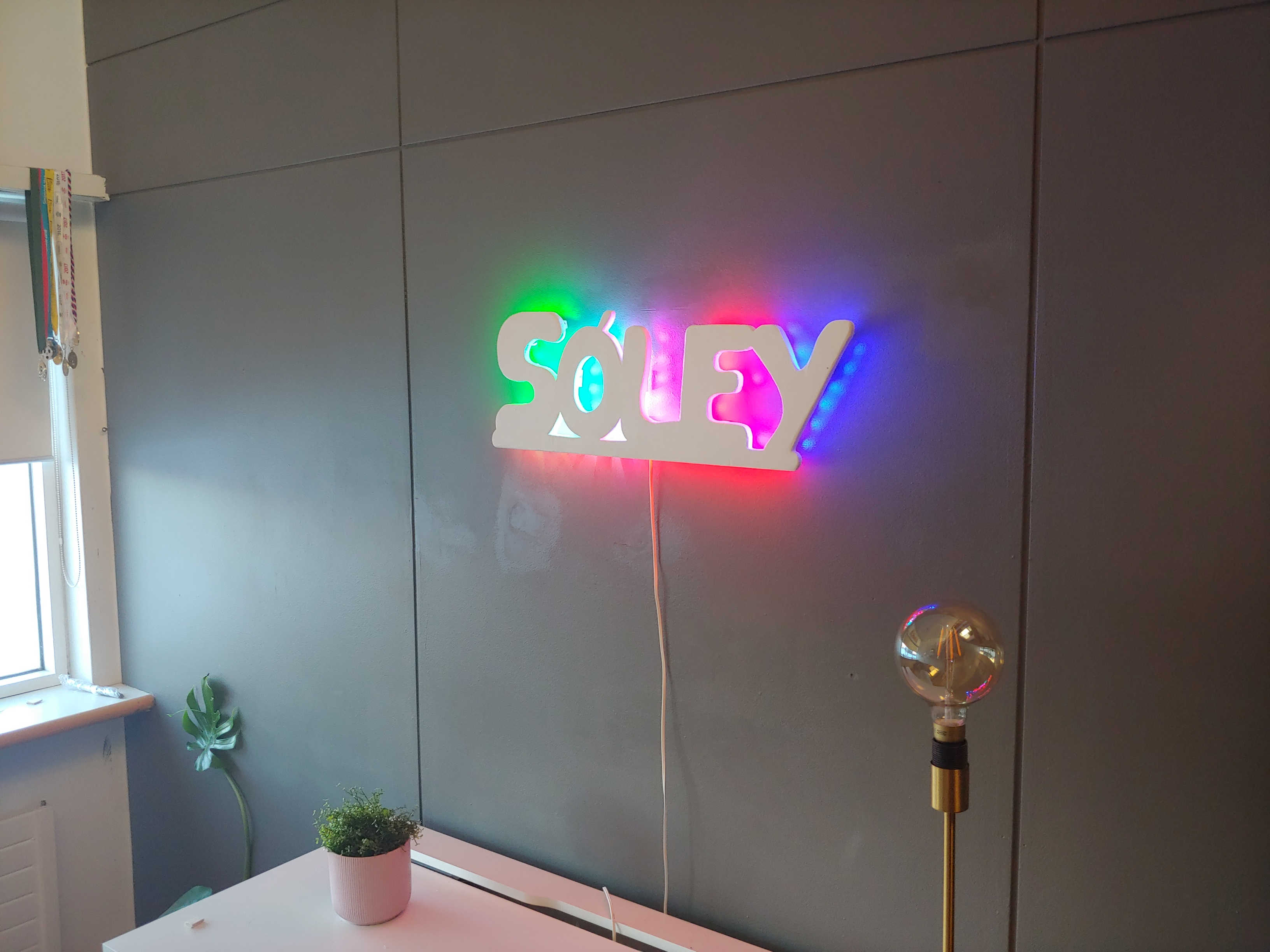

Hung the board up on a wall, and it look fine I think. At least my daughter is happy with ith
The VoffCon Code
I will need to create a VoffCon Control and VoffCon Control Card.
The VoffCon control Card:
// Comming soon
VoffCon Control javascript class:
StripCtrl.voffcon.ctrl //comming soon
VoffCon Control html template:
//comming soon
The Device Code
The program for the device is made up from ? files
ledDeviceServerEsp32.ino is this the main program running on the device
StripHelper.h This is the header file for controlling the strip
StripHelper.cpp This is the implementation file for controlling the strip
Adding this project to your VoffCon server
Just ask, and I'll help you. Email me at gudjonholm@gmail.com
